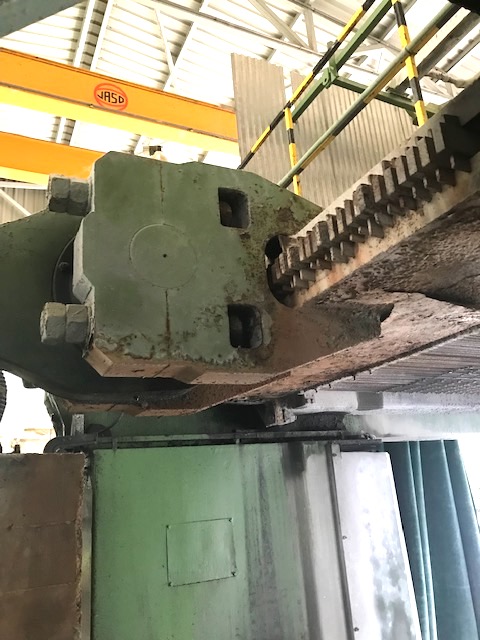

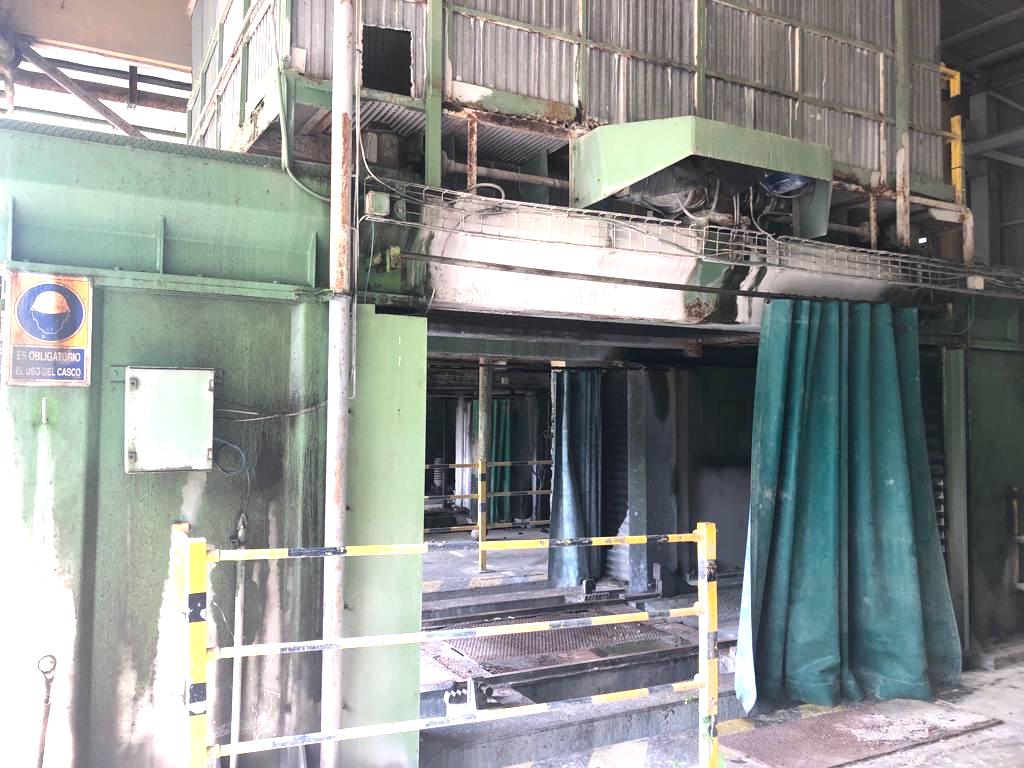

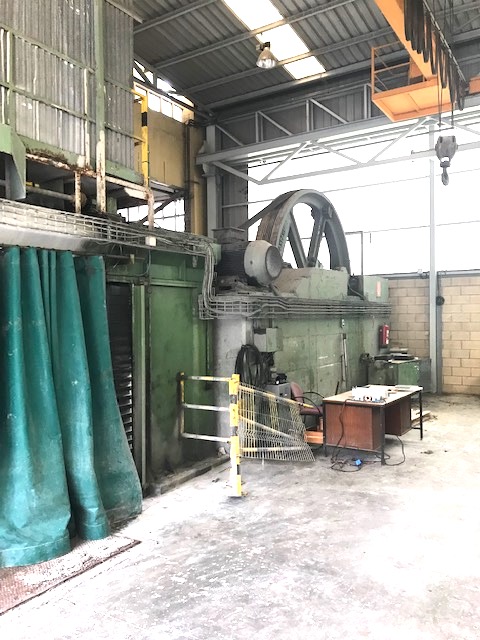

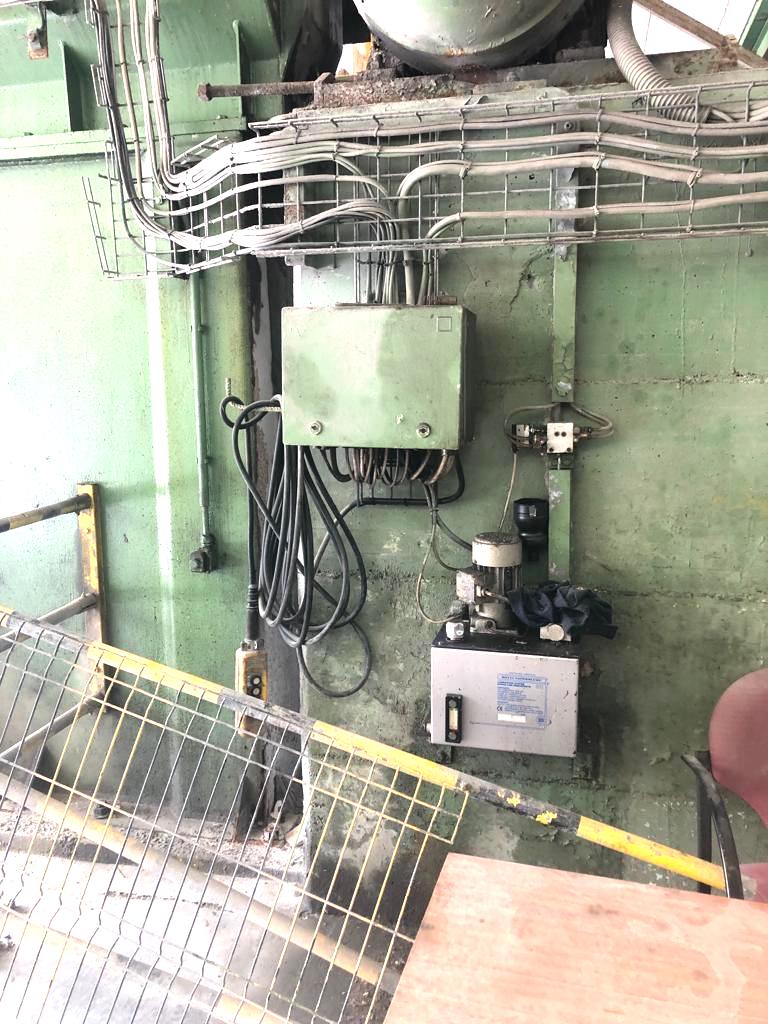

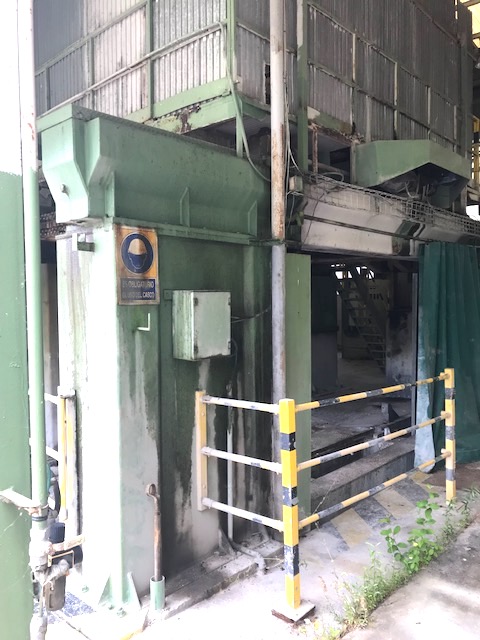

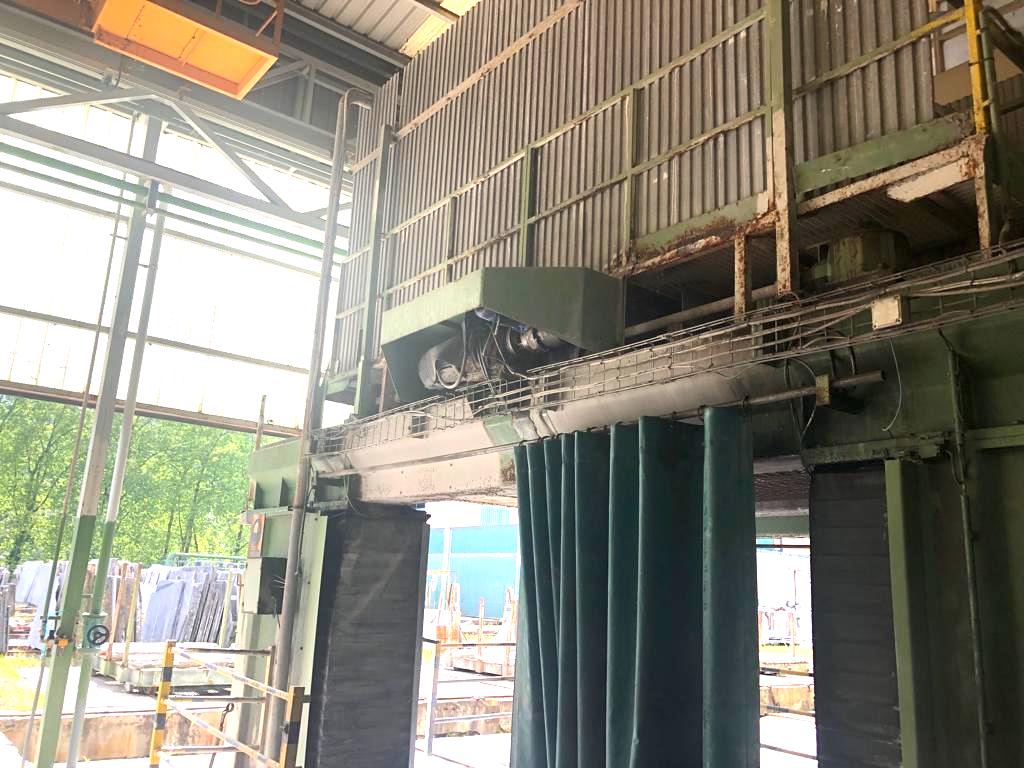

Telai per marmo -AFG-PT-MFS_JFO-GH-20200131-MGS_GaspariDGS-001

Technical specifications

-  Cutting width...........................................cm    200

-  Cutting length..........................................cm    330

-  Cutting height..........................................cm    205

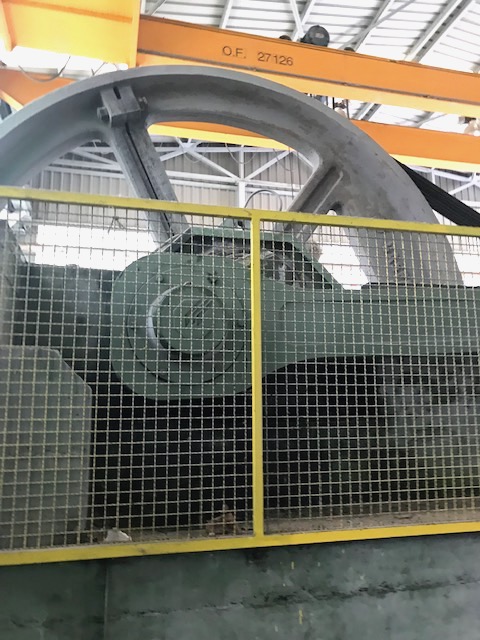

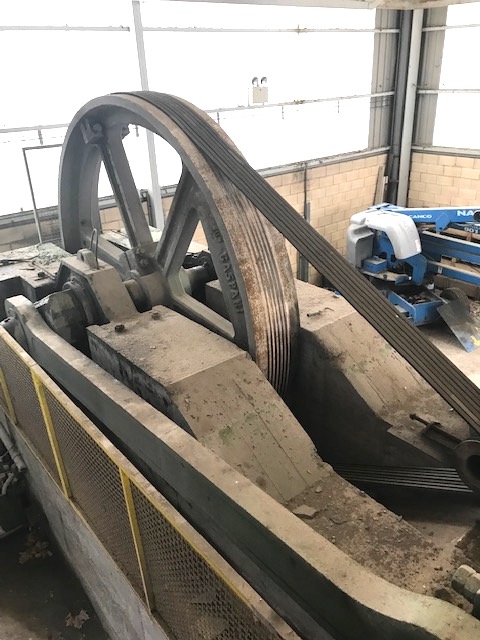

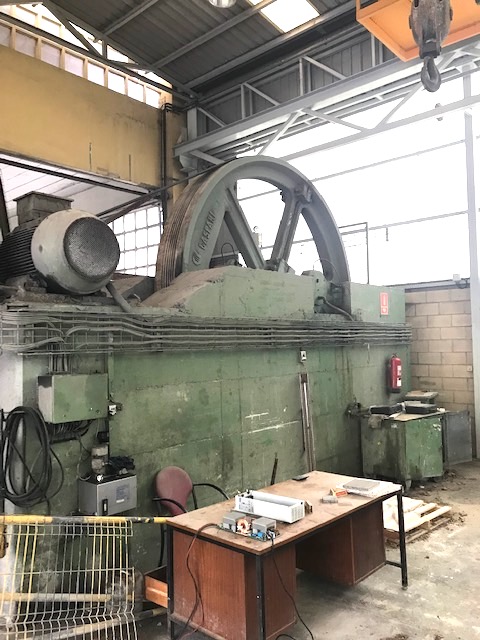

-  Flywheel diameter.......................................cm    360

-  Blade stroke............................................cm     80

-  Number of blades........................................cm     80

-  Number of strokes per minute............................RPM   85

-  Flywheel motor power....................................kW    90

-  Fast movements motor power..............................kW     7.5

-  Descent motor power.....................................kW     1.1

-  Total power installed...................................kW   98.6
